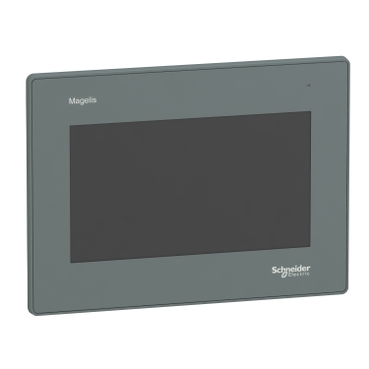

Magelis Easy GXU Advanced Touchscreen Panel
The Magelis Easy GXU is part of the Harmony Easy GXU range, featuring advanced touchscreen technology, designed to meet the needs of emerging markets with a focus on simplicity, robustness, and cost-effectiveness. This 7-inch LCD touchscreen panel is ideal for textile, packaging, HVAC, and pumping applications.
Description
This product is an advanced touchscreen panel with a 7-inch LCD screen, supporting an 800 x 480 pixels WVGA resolution. It includes 48MB of internal memory for applications, 128MB DDR memory, and 128kB backup memory. The display supports 65,536 colors and has a backlight lifespan of 20,000 hours. Powered by a 24V DC supply, it is equipped with various connection options such as USB, serial ports, and Ethernet. The product is IP65 rated, ensuring protection against dust and water ingress. Certified by CE, it is a reliable and efficient choice for industrial applications.
Specifications
| Feature |
Details |
| Product Range |
Harmony Easy GXU |
| Product Type |
Advanced touchscreen panel |
| Display Type |
LCD touch screen |
| Display Colour |
65,536 colours |
| Display Resolution |
800 x 480 pixels WVGA |
| Display Size |
7 inches |
| Backlight Lifespan |
20,000 hours |
| Rated Supply Voltage |
24 V DC |
| Software Designation |
Vijeo Designer Basic configuration software |
| Memory Description |
Internal, 48 MB for application, 128 MB DDR, 128 kB for backup |
| Integrated Connection Type |
USB type mini B, COM1 (RS232C), COM2 (RS422/RS485), USB type A, Ethernet 10/100BASE-TX |
| Cut-out Dimensions |
190 x 135 mm |
| Quality Labels |
CE |
| Ambient Temperature for Operation |
0…50 °C |
| Ambient Temperature for Storage |
-20…60 °C |
| IP Degree of Protection |
IP65 (front panel) |
Packing Units
Package 1
| Attribute |
Details |
| Unit Type |
PCE |
| Number of Units |
1 |
| Package Height |
9.3 cm |
| Package Width |
17.9 cm |
| Package Length |
25.4 cm |
| Package Weight |
821 g |
Package 2
| Attribute |
Details |
| Unit Type |
S04 |
| Number of Units |
12 |
| Package Height |
30 cm |
| Package Width |
40 cm |
| Package Length |
60 cm |
| Package Weight |
10.87 kg |
