With its nano-order speed basic command processes, the next generation MELSEC-Q Series dramatically improves system and machine performance.

As equipment and manufacturing facilities continue to evolve on a daily basis, the series enables high-speed, high-accuracy and large volume data processing and machine control.

FX5U-64MR/DS

FX5U; CPU; DC; 32 Inputs; 32 Relay Outputs; 3xAnalog; Eth; RS-485

Material Number	301923
Power Supply (V)	24
Current Type	DC
Program Memory	64K STEPS (FLASH)
Integrated Digital Inputs	32
Integrated Digital Outputs	32
Integrated Analogue Inputs	2
Output Type	RELAY
Local I/O Points	256
Local + Remote I/O Points	512
Expandable	YES
Cycle Time LD (ns)	34
Cycle Time MOV (ns)	34
Ethernet Port	1
RS-485	1
Power Consumption (W)	40
Buffer Battery	OPTIONAL
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC IQ-F SERIES

Product Dimensions & Weight

Depth (mm)	83
Weight (kg)	1
Width (mm)	220
Height (mm)	90

Conformity

CE	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, KR, LR, NK, RINA
EAC	NON-COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT

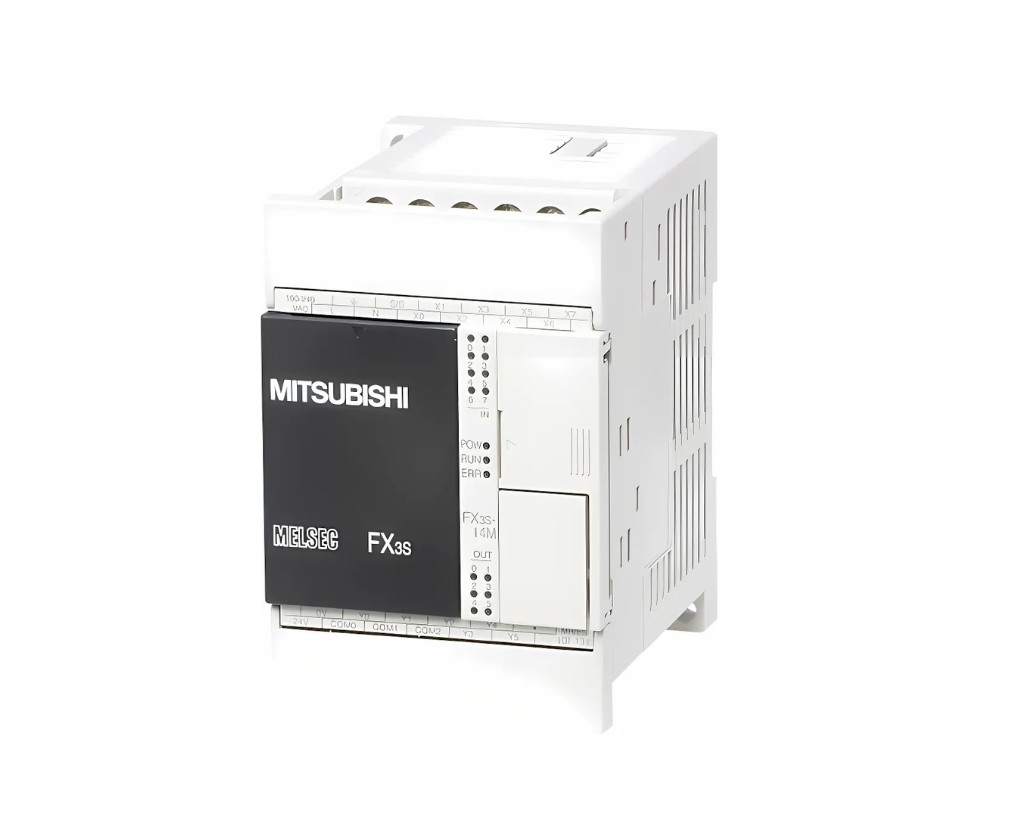

FX3S-14MR/ES

FX3S Base Unit AC100-240V; 8 Inputs DC24V; 6 Relay Outputs

Material Number	267113
Power Supply (V)	100-240
Current Type	AC
Program Memory	16K STEPS (EEPROM)
Integrated Digital Inputs	8
Integrated Digital Outputs	6
Output Type	RELAY
Local I/O Points	30
Local + Remote I/O Points	30
Expandable	NO
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	19
Buffer Battery	NO
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC-F SERIES

Product Dimensions & Weight

Depth (mm)	75
Weight (kg)	0.3
Width (mm)	60
Height (mm)	90

Conformity

CE	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, LR, NK
EAC	NON-COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT

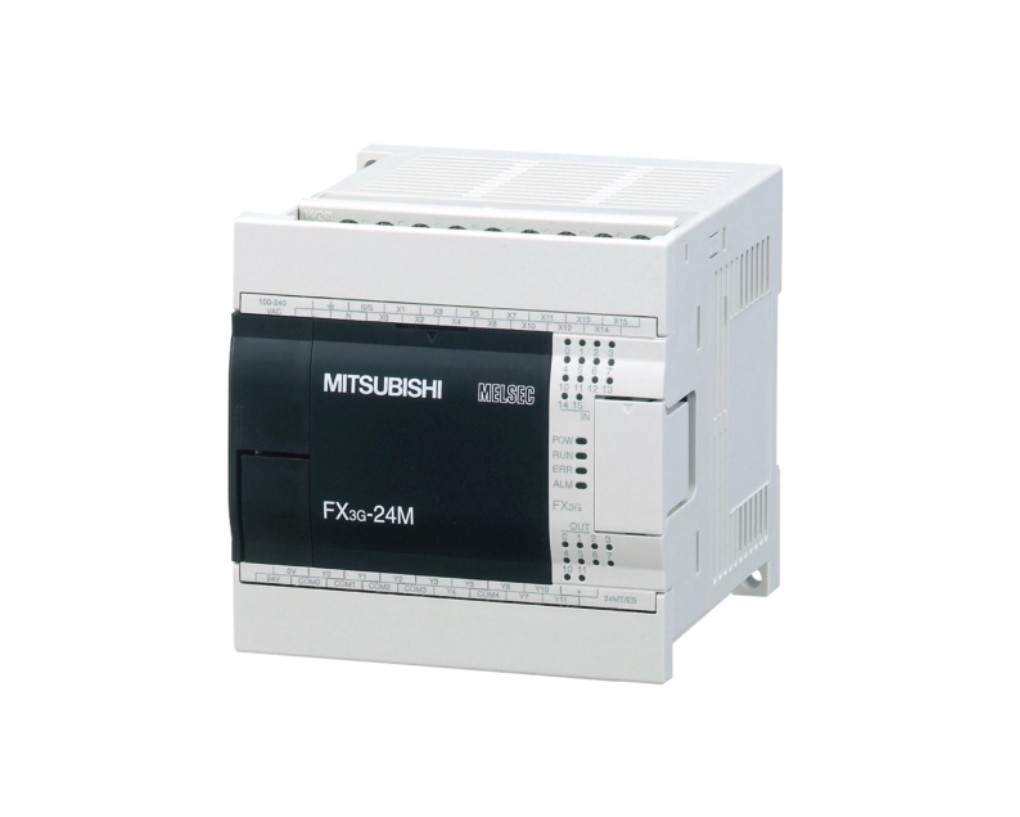

FX3G-24MR/DS

FX3G Base Unit DC 24 V; 14 Inputs DC 24V; 10 Relay Outputs

Material Number	231475
Power Supply (V)	24
Current Type	DC
Program Memory	32K STEPS (EEPROM)
Integrated Digital Inputs	14
Integrated Digital Outputs	10
Output Type	RELAY
Local I/O Points	128
Local + Remote I/O Points	256
Expandable	YES
Cycle Time LD (ns)	210
Cycle Time MOV (ns)	500
USB	1
RS-422	1
Power Consumption (W)	21
Buffer Battery	OPTION
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC-F SERIES

Product Dimensions & Weight

Depth (mm)	86
Weight (kg)	0.481
Width (mm)	90
Height (mm)	90

Conformity

CE	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, KR, LR, NK, RINA
EAC	NON-COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT
