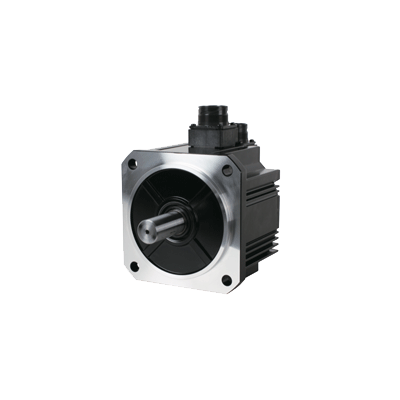

AC SERVO MOTOR Panasonic

Features

• Small, Light, Powerful, and Speedy: Compact design with enhanced performance, especially for middle and high inertia types.
• Significantly Extended Running Range: High speed and high torque in the industry's highest class.
• Enhanced Position Detecting Resolution: Enables smoother and more precise positioning with low vibrations, even at high speeds.
• Quick Settling Time: Achieves settling time approximately 64% faster than the conventional A5Ⅱ Family product.
• New Fit Gain Function: Substantially reduces adjustment time with automatic tuning and adjustments of adaptive notch filters and gains.
• 3.2 kHz Frequency Response: Realizes 3.2 kHz frequency response, providing a 139% improvement in productivity compared to conventional models.

Reduced Maintenance and Trouble

• High Dust-Proof and Heat-Resistant Oil Seals: Motors are equipped with high-quality oil seals (with protective lip) designed for demanding environments like dusty or powdery areas.
• Protection for Harsh Environments: The oil seals are made from heat-resistant materials to ensure longevity and reliability in harsh conditions.
• IP67 Enclosure Rating: Motors are equipped with direct-mount connectors for improved sealing performance to meet IP67 standards. Custom options are available for motors with flange sizes of 80 mm or smaller.
• Geared Servomotor Option: A lineup of geared servomotors is available to meet diverse operational needs.

Multifunctional Software for Quick Adjustment Support

• PANATERM Set-Up Support Software: This software helps users easily set parameters, monitor control conditions, and analyze mechanical operation data on a PC screen. Supports English, Japanese, Chinese, and Korean languages.

Battery-Less Absolute Encoder Motor

• Eco-Friendly and Economical: The power-generating element installed in the motor eliminates the need for a battery, improving maintainability and supporting eco-friendly and cost-effective industrial machines and systems.

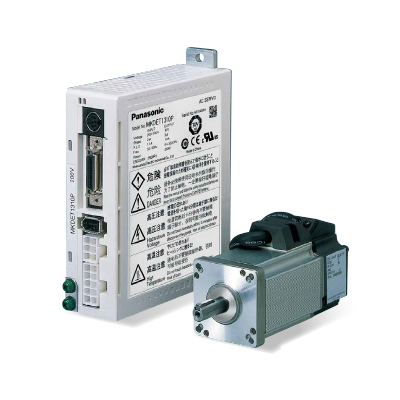

Features

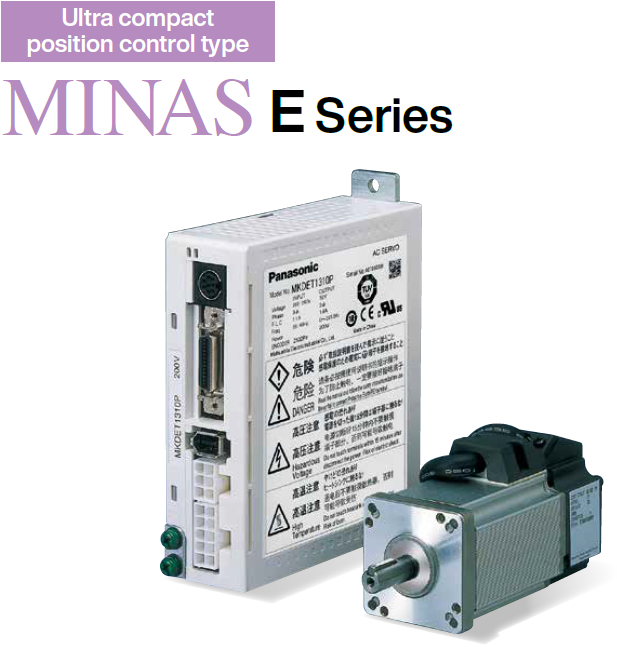

• Best Fit for Small Drives: The MINAS E Series has evolved in down-sizing by 47% in size, making it ideal for compact applications. (Compared to MUDS043A1)
• Exclusively Designed for Position Control: Tailored to provide precise position control, meeting the needs of small and medium-sized drives.
• Easy to Handle, Easy to Use: The DIN-rail mounting unit option improves handling and installation. A user-friendly console simplifies setup and operation.
• High-Functionality Real-Time Auto-Gain Tuning: Real automatic gain tuning for both low and high stiffness machines. The combination of an adaptive filter offers effortless setup and tuning.
• Console Option: The console option provides a user-friendly interface for easy operation and parameter adjustments.

High-Speed Positioning with Resonance Suppression Filters

• Built-in Notch Filter: Suppresses the resonance of the machine for smoother operation and high-speed positioning.
• Built-in Adaptive Filter: Detects resonance frequency in real-time and automatically suppresses vibrations, ensuring smooth and stable operation.

Smoother Operation for Low Stiffness Machines

• Damping Control Function: Suppresses vibration during acceleration and deceleration, ensuring stable operation even for machines with low stiffness.

1. Easy to Handle, Easy to Use

• Real-Time Auto-Gain Tuning: The Real-Time Auto-Gain Tuning system offers automatic adjustments for both low and high stiffness machines, improving performance and reducing setup time. It supports vertical axis applications where load torque varies in different rotational directions.
• DIN-Rail Mounting Unit (Optional): The optional DIN-rail mounting unit allows for easy parallel mounting with small control devices like PLCs. It provides a simplified mounting and dismounting process.

2. Further Reduction of Vibration

• Adaptive Filter: The adaptive filter automatically tracks the machine’s resonance frequency in real-time, ensuring efficient suppression of vibrations. It helps in preventing the "Judder" noise caused by aging or variations in machine resonance frequency.
• Notch Filter: The 1-channel notch filter is independent of the adaptive filter and allows frequency and notch width adjustments in 1Hz units. It is effective in suppressing "Judder" noise, especially for machines with multiple resonance points.
