Product Introduction

• • A wide variety of specifications to suit every system design.
• • Communication interfaces such as Ethernet, RS-232, RS-422/485, USB host/device, and SD memory card are standard features.
• • High capacity data processing ensures smooth screen operation even when multiple tasks such as logging, scripting, alarm, or device data transfer are running.
• • Image recording, image playback, video image input, and RGB output are available* for full GOT2000 functionality on GT27 models.
• • Excluding GT2705, all other models support various connection interfaces, including extension options for specialized network communication.

GT27 Model Specifications

Backup/Restoration Function

The programs and parameters of the programmable controller CPU can be backed up to the SD memory card or USB memory device in the GOT. In case of a CPU failure, users can restore the data to the controller through batch operation.

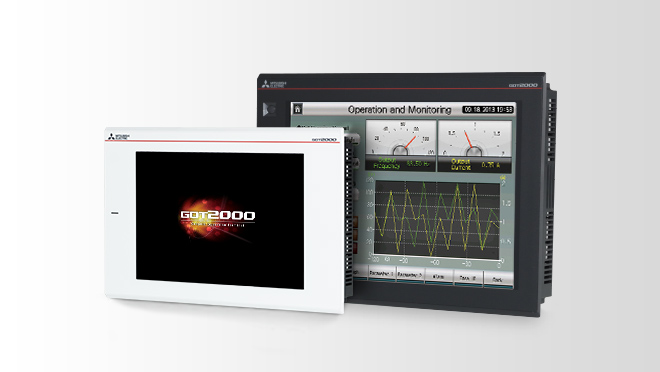

GT27 Model External Appearance

Standard model: front and rear faces, featuring a flat body, human sensor (only for certain models), and multiple interfaces including Ethernet, USB host, USB device, and SD memory card interface. The white model offers a clean image with its front flat screen that’s easy to clean and interfaces located on the back.

Safety Standards

The GOT is acceptable for use in hazardous locations classified by various safety standards such as Class I, Division 2 (US & Canada), ATEX (EU), and KCs (Korea). Supported standards vary depending on the model. For more details, please refer to the "Support various international standards".

Product Introduction

• • A wide variety of specifications to suit every system design.
• • Communication interfaces such as Ethernet, RS-232, RS-422/485, USB host/device, and SD memory card are standard features.
• • High capacity data processing ensures smooth screen operation even when multiple tasks, such as logging, scripting, alarms, or device data transfer, are running.

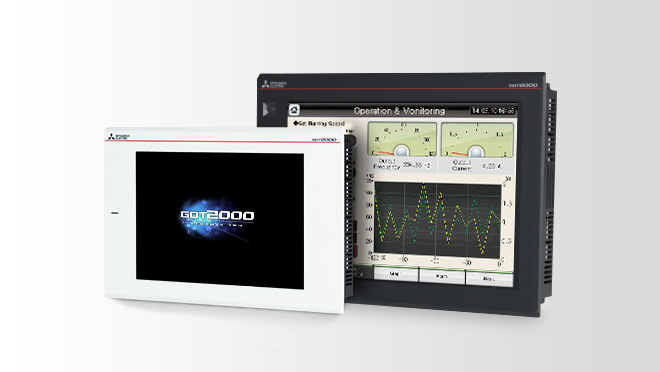

GT25 Model Specifications

FA Transparent Function

The FA Transparent function simplifies debugging by allowing you to connect a personal computer to the front USB interface on the GOT. The GOT acts as a transparent gateway, enabling you to start up and adjust equipment without the need to open the electrical cabinet or change cable connections.

GT25 Model External Appearance

The GT25 model features a simple and stylish design with a linear motif. Its sleek, flat body makes it easy to clean, and the white model presents a clean, professional appearance. Below are the key features for both standard and white models:

• • USB interface: device (USB Mini-B) - Front face (standard models only, rear face for white models)
• • USB interface: host (USB-A) - Rear face (GT2505 and white models)
• • Extension interface - For communication and option units (not available in GT2505)
• • Ethernet interface - Simultaneously connects up to four types of industrial devices from different Wholesalers
• • RS-232 interface - Connects to various industrial devices, barcode readers, and serial printers
• • RS-422/485 interface - Connects to various industrial devices and barcode readers
• • Side interface - Install a wireless LAN communication unit
• • SD memory card interface - Saves large volumes of data, including alarms and logging data

White Model Features

The white model is designed with a flat body that makes it easy to clean. The sleek white finish gives it a clean and professional look, complementing any machine design.

Safety Standards

The GOT is acceptable for use in hazardous locations classified by various safety standards, including Class I, Division 2 (US & Canada), ATEX (EU), and KCs (Korea). Supported standards vary depending on the model. For more details, please refer to the "Support various international standards".

Product Introduction

• • Various interfaces are equipped in a compact body for flexibility and compatibility.
• • Stylish design with a narrow bezel available in silver and black finishes.
• • Two Ethernet ports and built-in sound output interface* are equipped as standard, adding value to your system.
• • Ultra-high resolution WXGA (1280×800 dots) for the 12.1-inch and 10.1-inch models, ensuring sharp and clear visuals.
• • Built-in sound output interface for audio output (*A speaker with built-in amplifier is required separately).
• • Wireless LAN communication unit support for added connectivity options.

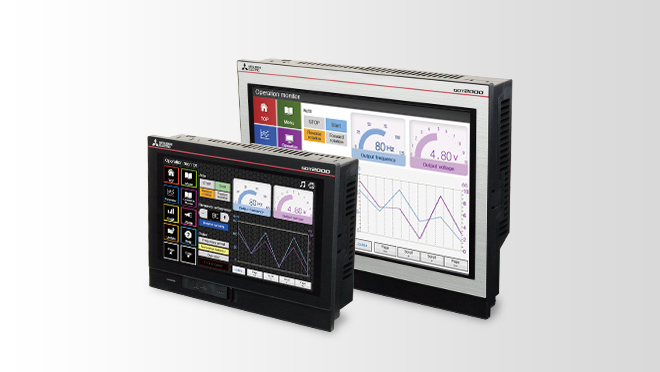

GT25 Wide Model Specifications

External Appearance

The GT25 wide models are designed with a sleek and compact form. Below are the key features of the external appearance for both standard and white models:

• • USB interface: device (USB Mini-B) - Front face (standard models only, rear face for white models)
• • USB interface: host (USB-A) - Rear face (for all models, including white)
• • Ethernet interface (2 ports) - Simultaneously connects up to four types of industrial devices from different Wholesalers
• • RS-422/485 interface - Connects to various industrial devices and barcode readers
• • RS-232 interface - Connects to various industrial devices, barcode readers, and serial printers
• • Sound output interface (Φ3.5 minijack) - Connects a stereo mini-plug for audio output
• • SD memory card interface - Saves large volumes of data, including alarms and logging data
• • Wireless LAN communication unit interface - For installing a wireless LAN communication unit

Additional Features

The GT25 series provides excellent functionality and design, with a range of interfaces to ensure seamless integration with various systems. With dual Ethernet ports and built-in sound capabilities, these models provide enhanced flexibility and connectivity, making them suitable for complex industrial environments.

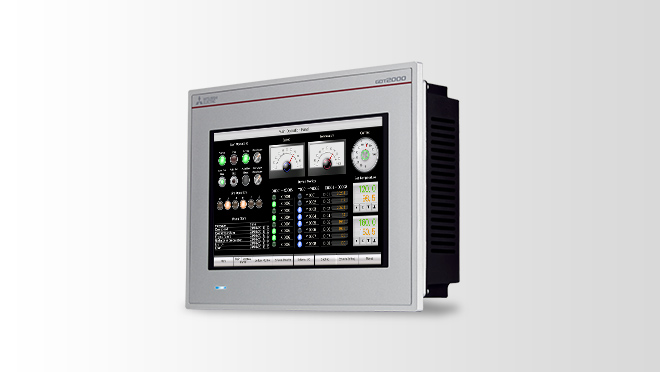

Hardware Features

External Appearance

The GT25 wide models feature a durable and sleek design that enhances both functionality and aesthetics:

• • The metal enclosure increases resistance against vibration and shock.
• • UV rays are filtered by approximately 95% (370 nm), protecting the display from sunlight exposure.
• • Complies with IP66F and IP67F ratings for front-facing protection and IP2X rating for internal control panel protection.
• • Suitable for harsh environments with resistance to high vibrations and shock impacts.

Interfaces and Ports

The following interfaces are included in the GT25 model for flexible integration and connectivity:

• • **Ethernet Interface (2 Ports):** Connects up to four types of industrial devices from different Wholesalers, with CC-Link IE Field Network Basic compatibility.
• • **RS-422/485 Interface:** Connects to various industrial devices and barcode readers.
• • **RS-232 Interface:** Connects to industrial devices, barcode readers, and serial printers.
• • **Sound Output Interface (Φ3.5 minijack):** Output sound by connecting a Φ3.5 stereo mini-plug (3-prong).
• • **USB Host (USB-A):** Transfer project data or read logging data from the GOT using USB memory. USB mouse, keyboard, barcode reader, or RFID reader can also be connected.
• • **USB Device (USB Mini-B):** Connect to a personal computer and transfer data.
• • **SD Memory Card Interface:** For saving large volumes of data, including alarms and logging data.
• • **Wireless LAN Communication Unit Interface:** For installing a wireless LAN communication unit.

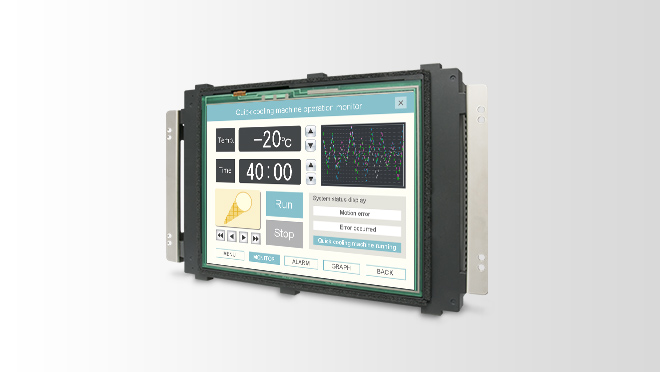

GT25 Open Frame Model Specifications

Features and Advantages

The GT25 Open Frame model is designed to fit seamlessly into industrial applications with the following key features:

• Machine Design Integration: Install the GOT2000 from the back side of the control panel for a clean and modern surface design. It fits well into production machines, especially in the pharmaceutical and food industries.
• IP67F Protection: Complies with IP67F standards, ensuring the display is water-resistant. The touch panel can be operated with wet hands, wiped with a damp cloth, and even washed with water. However, note that this structure does not guarantee protection in environments with long-term exposure to oil or chemicals.
• Suitable for Harsh Environments: The flush surface design prevents dust, dirt, and debris from accumulating in gaps or grooves, making it suitable for pharmaceutical and food industries.

External Appearance

The open frame model features a clean design with no external enclosure, offering flexibility in installation:

• Touch Panel: Requires an optional or user-supplied environmental protection sheet for enhanced durability.
• Unit Installation Fittings: Fittings to install the GOT to a panel are included, making the setup process easier.
• Ethernet Interface: Supports simultaneous connection of up to four types of industrial devices from different Wholesalers, with compatibility for CC-Link IE Field Network Basic devices.
• RS-232 and RS-422/485 Interfaces: These interfaces are designed to connect to various industrial devices, barcode readers, and serial printers.
• USB Interfaces: The USB host (USB-A) and USB device (USB Mini-B) interfaces provide easy data transfer and connectivity with external devices such as a USB mouse, keyboard, barcode reader, or RFID reader.
• Side Interface: Allows the installation of a wireless LAN communication unit for flexible communication options.

Easy Installation

The installation process is made simple with adjustable fittings that accommodate control panel thickness from 1.5 mm to 4 mm. It also allows for vertical installation, offering flexibility in various machine configurations.

Safe Installation

To ensure safety during installation, the edges of the touch panel are protected to prevent damage to the touch panel or injury from sharp edges. This ensures the installation process is both secure and safe for users.

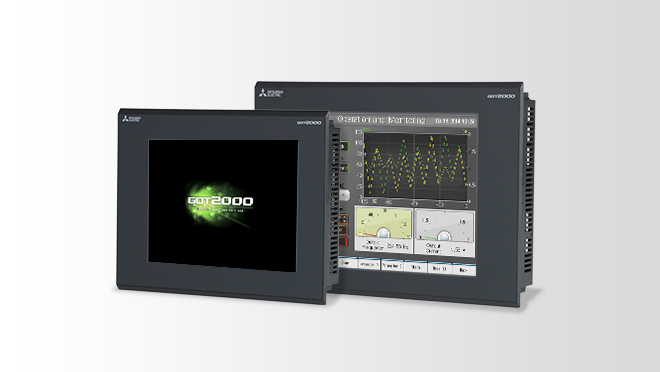

GT23 Model Specifications

Key Features

The GT23 model offers various features that enhance functionality and system integration, including:

• Simple Design: The sleek, linear motif design complements any machine design, blending seamlessly into industrial environments.
• Flat Body: The front flat screen is easy to clean and maintain. USB interfaces are conveniently located on the back.
• Ethernet Interface: Supports Ethernet to simultaneously connect up to two types of industrial devices from different Wholesalers. It is also compatible with CC-Link IE Field Network Basic devices.
• RS-232 & RS-422/485 Interfaces: Connects to various industrial devices, barcode readers, and serial printers, offering flexibility in communication.
• USB Interfaces: The USB host (USB-A) and USB device (USB Mini-B) allow for project data transfer, data logging, and connectivity with USB peripherals such as a mouse, keyboard, barcode reader, and RFID reader.
• SD Memory Card Interface: Enables the storage of large volumes of data, including alarms and logging data.

Advanced Features

The GT23 model also supports advanced interactive functions:

• System Launcher: The graphical system configuration diagram provides a quick and easy way to check the system status. By touching a module, you can view the extended function list for efficient maintenance tasks.
• Data Logging & Visualization: The system supports data collection from programmable controllers and temperature controllers. This data can be displayed in graphs and lists, making it easy to analyze. It can also be exported to a personal computer for further analysis. Additionally, logging data is stored in built-in SRAM, even during power failures, ensuring no data loss.

External Appearance

The GT23 model features a clean, simple design with a flat front screen for easy cleaning:

• Simple Design: The sleek and minimalistic design complements industrial machine designs.
• USB Interface: USB interfaces are positioned on the back for better cable management.
• Ethernet Interface: Dual Ethernet ports for connecting industrial devices.
• RS-232/RS-422/485 Interfaces: Connect to a wide range of industrial devices, barcode readers, and printers.
• SD Memory Card Interface: Save and transfer large amounts of data, including logs and alarms.

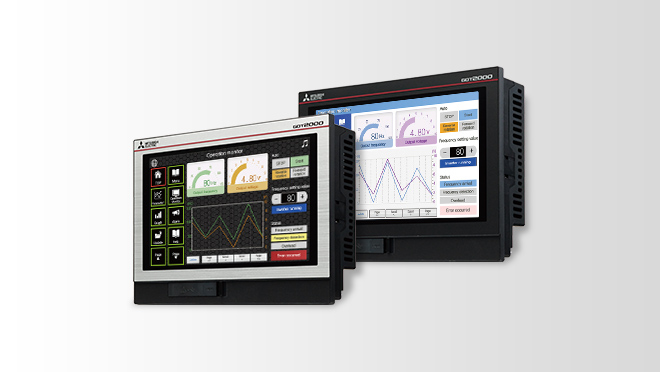

GT21 Wide Model Specifications

Key Features

The GT21 wide model offers a variety of features that enhance functionality and versatility:

• High Resolution: The 800 × 480 WVGA resolution ensures clear and detailed visuals, improving the overall user experience.
• USB Host Functionality: For the first time in the GT21 series, the USB host feature allows for connecting a USB mouse and keyboard, as well as transferring data using a USB memory stick. Ethernet printers are also supported.
• VNC Server Support: Enables remote operation and monitoring of the GOT, allowing for more flexible control in industrial settings.
• Outline Font & Antialiasing: Support for outline fonts and antialiasing improves the readability and clarity of text displayed on the screen.

External Appearance

The GT21 wide model features a clean and simple design with easy integration into industrial setups:

• Simple Design: The minimalistic design fits seamlessly into industrial environments.
• USB Interfaces: Both USB-A (host) and USB Mini-B (device) interfaces for flexible peripheral connectivity and data transfer.
• Ethernet Interface: Connects up to two types of industrial devices simultaneously, supporting diverse systems from different Wholesalers. CC-Link IE Field Network Basic devices are also compatible.
• RS-232/RS-422/485 Interfaces: These interfaces allow for connection to a variety of industrial devices such as barcode readers, serial printers, and more.
• SD Memory Card Interface: Easily store large amounts of data, including alarms and logging data, ensuring efficient data management and retrieval.

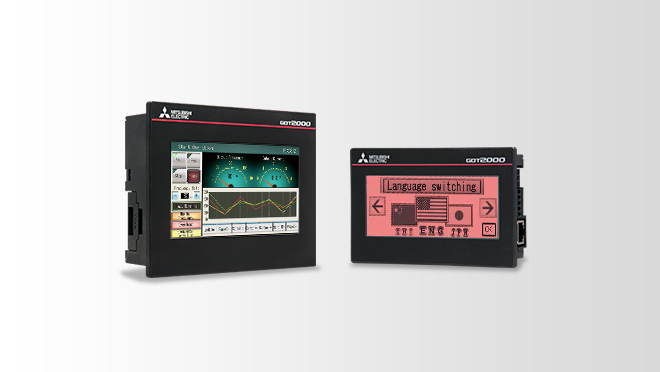

GT2104-R Compact Model Specifications

Key Features

The GT2104-R model is a compact, yet feature-rich HMI suitable for a variety of industrial applications:

• High Resolution Display: The 480 × 272 resolution provides clear, detailed visuals, enabling easy reading of data on the screen.
• Wide Screen Display: The widescreen aspect ratio allows for more data to be displayed at once, making it ideal for complex applications requiring lots of information at a glance.
• Compact Design: The compact 4.3" size makes it suitable for space-constrained environments, while still offering high performance.
• USB Device Functionality: The USB Mini-B port allows you to connect to a personal computer for data transfer, providing flexibility in system management.
• Ethernet Support: Use Ethernet to connect multiple industrial devices from different Wholesalers, with support for CC-Link IE Field Network Basic devices.

External Appearance

The GT2104-R model features a sleek and simple design, with a flat body that makes it easy to clean and maintain:

• Simple Design: A linear motif and minimalist design ensure that the device complements any machine setup.
• Flat Body: The front flat screen is easy to clean and maintain, contributing to a low-maintenance user experience.
• USB Interface: A USB Mini-B port for easy data transfer and connection to a personal computer or other devices.
• Ethernet Interface: Enables simultaneous connection to up to two types of industrial devices, supporting different Wholesalers and CC-Link IE Field Network Basic compatible devices.
• RS-232/RS-422/485 Interfaces: Versatile interfaces that connect to various industrial devices such as barcode readers and serial printers.
• SD Memory Card Interface: Store large volumes of data, including logs and alarms, for efficient data management.

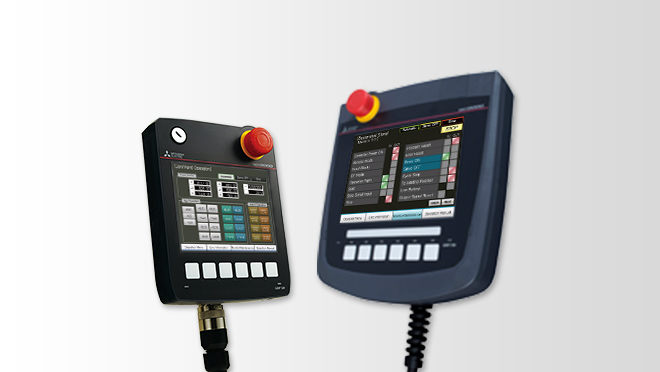

GT25 Handy GOT Specifications

Key Features of GT25 Handy GOT

The GT25 Handy GOT is an enhanced and compact HMI solution designed to bring essential HMI functionality to your handheld device. It replaces older models such as the GT16/GT14 Handy GOT, and is equipped with a range of advanced features:

• Compact and Portable: The GT25 Handy GOT provides full HMI functionality in the palm of your hand, with a variety of screen sizes and interfaces to meet your needs.
• High Resolution Display: VGA resolution and 65536 color display ensure clear visibility of the data and controls, even in compact form.
• Multiple Interface Options: Offers flexible communication with Ethernet (2 ports for GT2506HS, 1 port for GT2505HS), RS-232, and RS-422/485 options (RS-485 limited to GT2506HS). Also supports USB device and host functionality for connecting various peripherals.
• Memory: 32 MB ROM for storage and 80 MB RAM for smooth operation, allowing for effective data management and processing.
• SD Memory Card Interface: This allows for large data storage, including logs and alarms, for efficient system data handling.
• Ethernet and USB Connectivity: Supports high-speed data transfer via USB 2.0 ports (USB-A for host, USB Mini-B for device), as well as Ethernet for connecting to a variety of industrial devices.

External Appearance

The GT25 Handy GOT models are designed with portability and functionality in mind:

• Sleek Design: The compact, user-friendly design ensures it is easy to hold and operate with one hand, making it ideal for mobile or handheld applications.
• Clear Display: The TFT color LCD screen ensures a sharp, easy-to-read display, even in difficult lighting conditions.
• USB Ports: A USB-A port for transferring data and a USB Mini-B port for connecting to a personal computer for device management.
• Flexible Connectivity: Offers Ethernet and serial communication interfaces, providing compatibility with various industrial devices and networks.

GT25 Handy GOT Functionality

The GT25 Handy GOT provides essential functionality with flexible communication options, allowing seamless integration into existing systems. It is particularly suitable for users looking to replace older models, like the GT16/GT14 Handy GOT, with a more capable and portable solution:

• Ethernet Communication: Use Ethernet to connect multiple devices from different Wholesalers, improving the interoperability of your systems.
• RS-232/RS-422/485 Support: Choose from multiple communication protocols, depending on the model, to connect to a variety of industrial devices and networks.
• CC-Link IE Field Basic Support: Enhance your system's performance and connectivity with support for CC-Link IE Field Basic networks.
