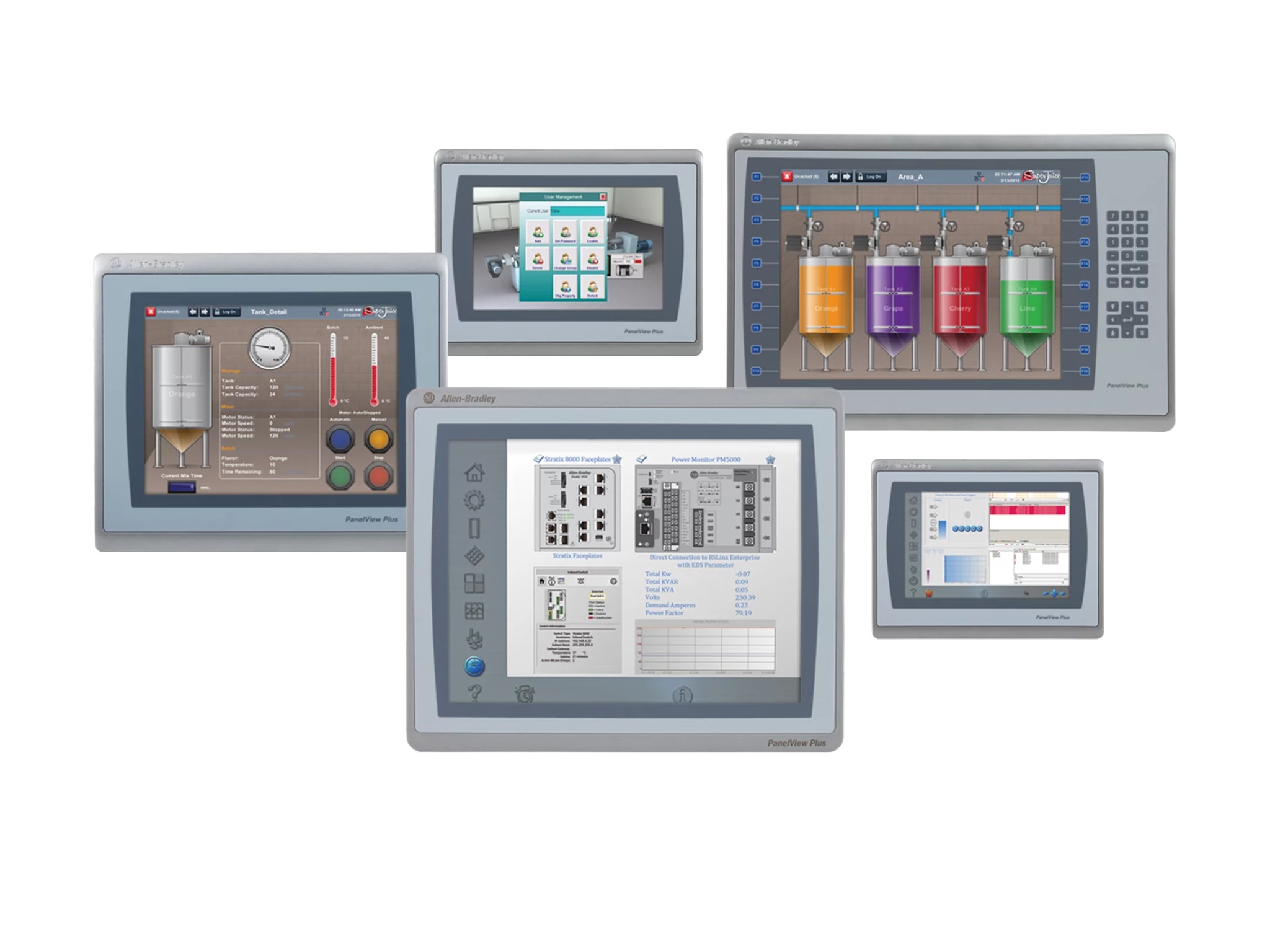

Overview of PanelView Plus 7 Series

The PanelView Plus 7 series from Allen-Bradley offers a range of Human-Machine Interface (HMI) solutions designed for industrial automation applications. These devices come with advanced connectivity, display options, and high performance for better user interaction and control. Below is an overview of the various models and their features.

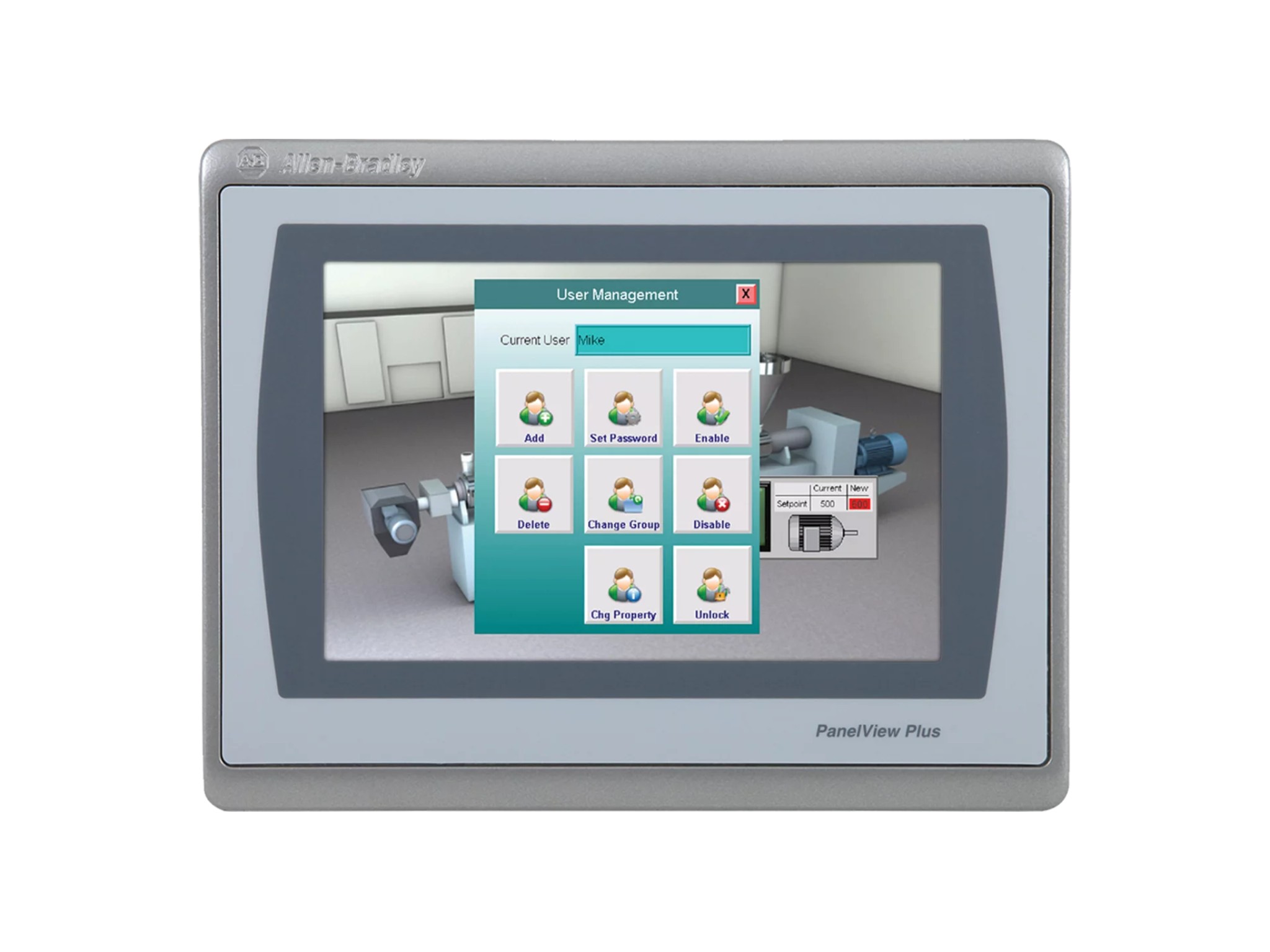

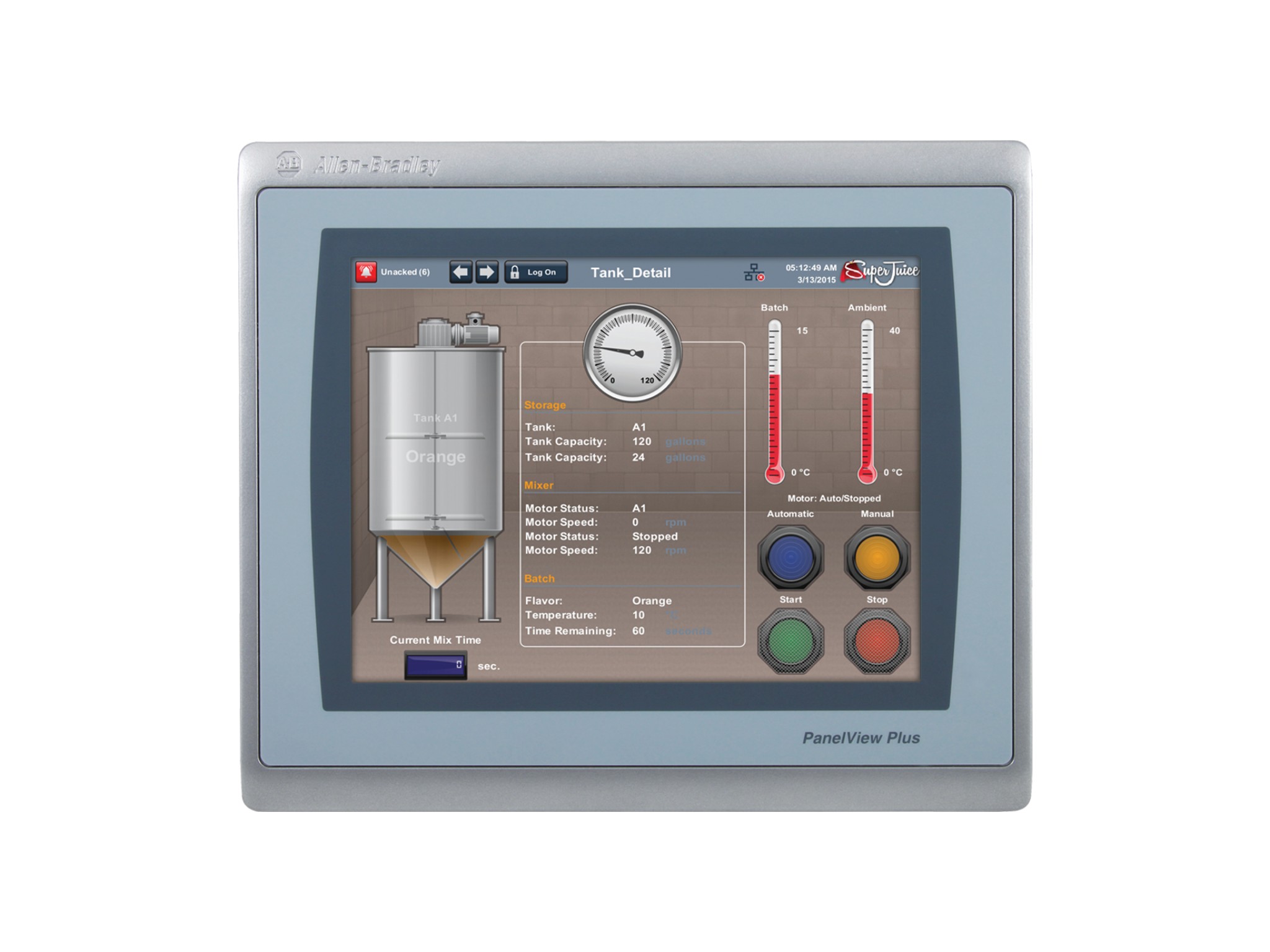

PanelView Plus 7 Standard

• Operating System: Windows CE 6.0
• Display: Color TFT LCD, 18-bit color graphics
• Display Sizes: From 4 to 15 inches, including wide screen and on-screen keypad options
• Memory: 512 MB RAM, 512 MB nonvolatile memory (80 MB user memory)

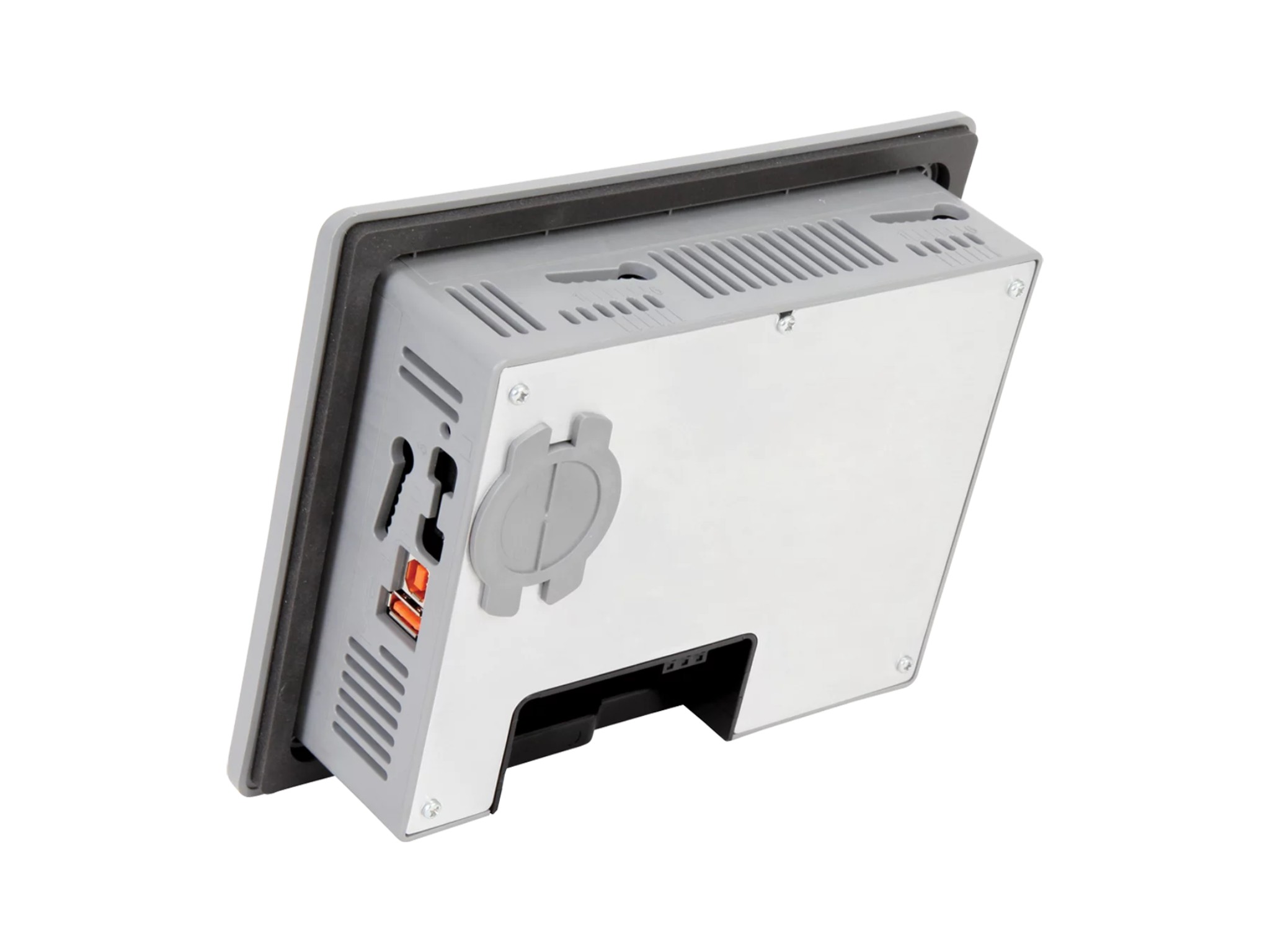

• Networking: 1 x RJ45 10/100 MB Ethernet port with IEEE 1588 support, Single or DLR Ethernet ports
• Connectivity: VNC connectivity and FactoryTalk ViewPoint for remote monitoring
• Notifications: Email and text alerts
• Storage: SD card or USB drive for application backup
• Alarm Support: 100 screens and 500 alarms when used with FactoryTalk Machine Edition and one controller

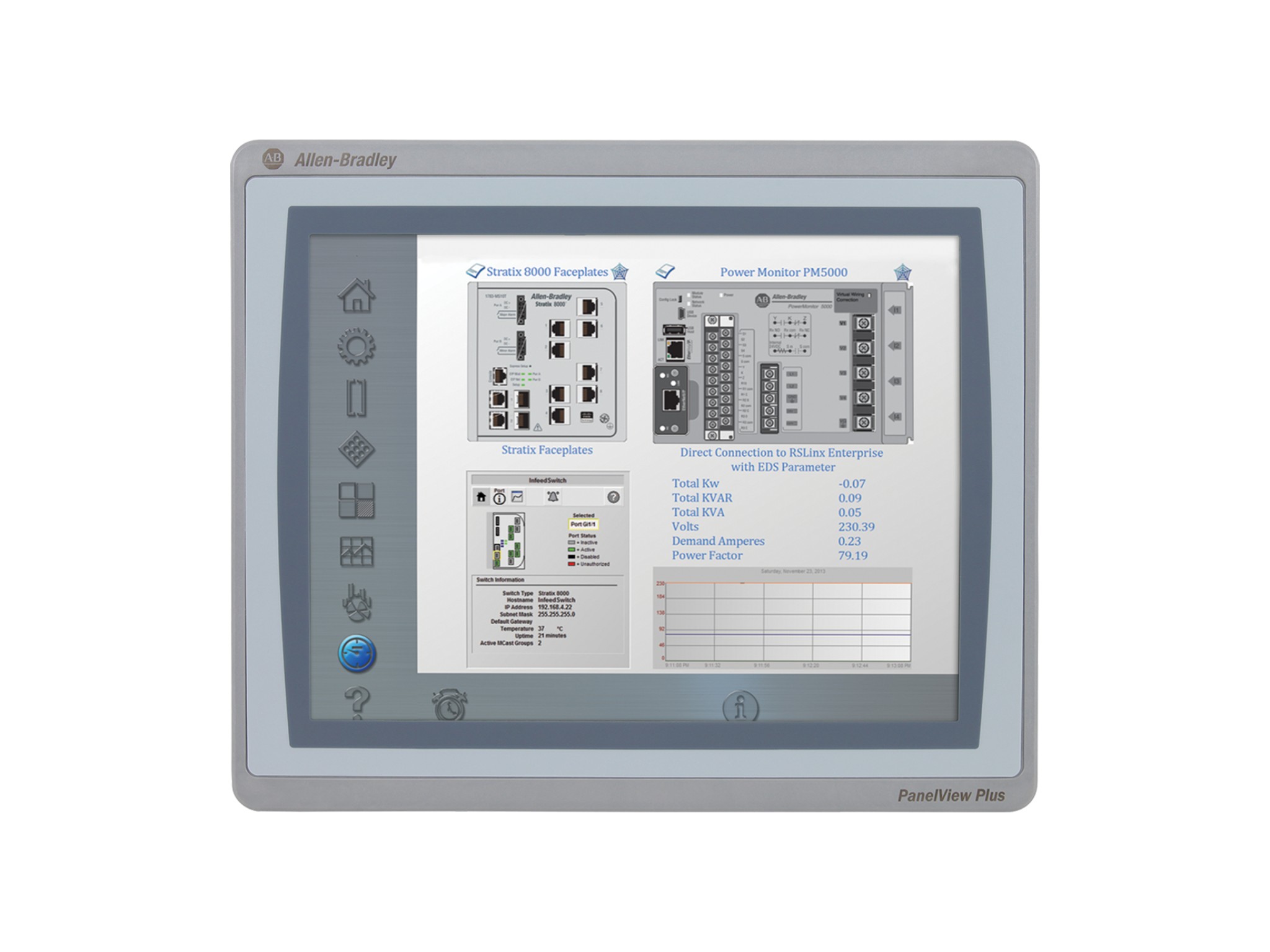

PanelView Plus 7 Performance

• Operating System: Windows 10 IoT Core (LTSC)
• Display: Color TFT LCD, 18-bit color graphics

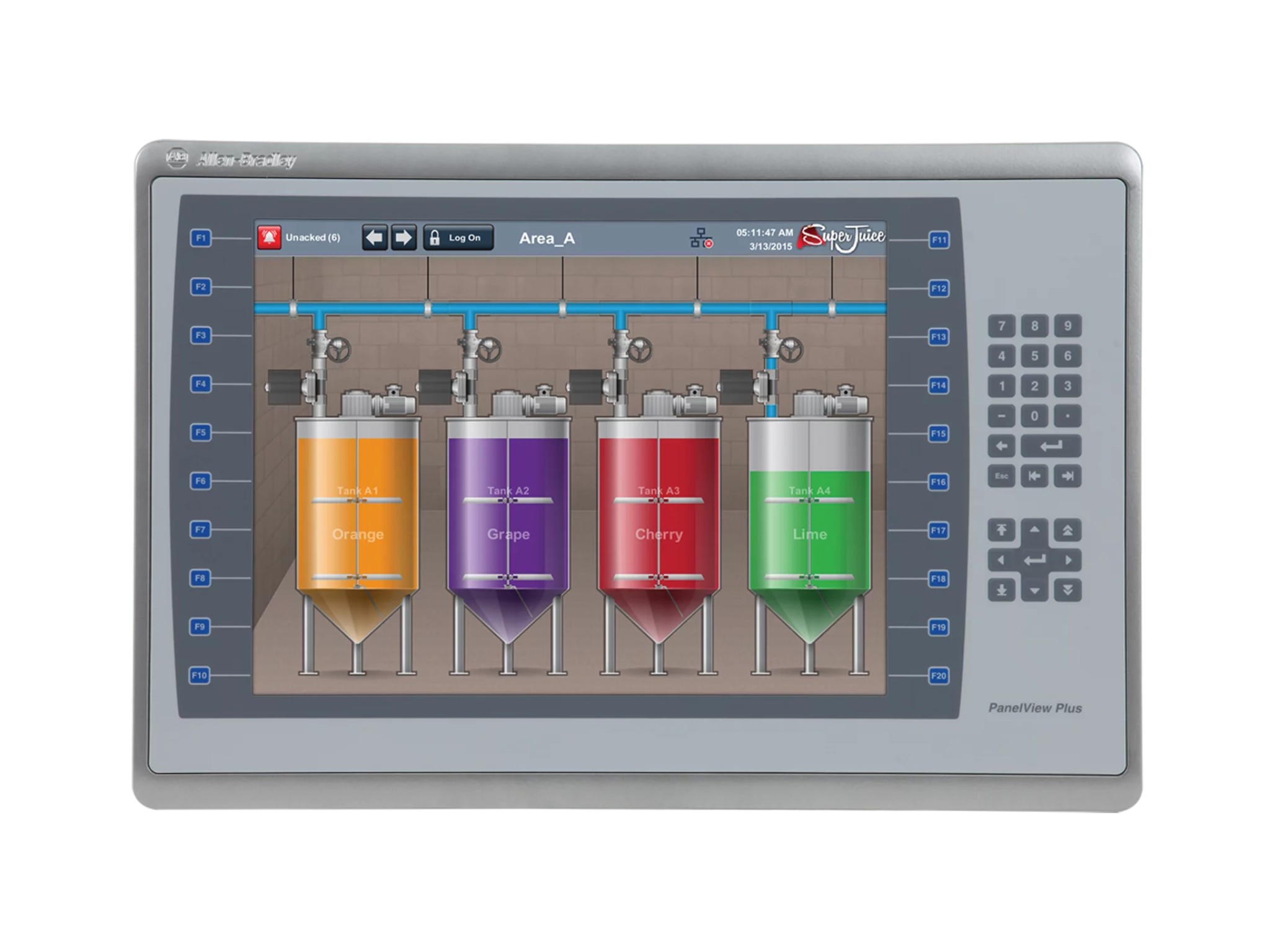

• Display Sizes: From 7 to 19 inches, including wide screen and keypad options
• Memory: 4GB RAM, 20GB nonvolatile memory (~2GB free user memory)
• Networking: 2 x Ethernet ports supporting DLR, linear, or star network topologies
• VNC Server Connectivity: Remote monitoring with FactoryTalk ViewPoint
• Storage: SD card or USB drive for easy application backup
• Notifications: Email and text alerts
• Advanced Features: Video playback support for user help
• Alarms & Screens: Similar to the standard model but with enhanced performance due to the more powerful OS

Specialized Versions

Conformally Coated Version

• Available For: All touch-only displays and 15-inch keypad version of the PanelView Plus 7 Performance
• Compliance: Severity Level GX per ANSI/ISA 71.04-2013

Stainless Steel Version

• Display Sizes: 9, 10, 12, and 15 inches (brandless)
• Material: 316 stainless steel bezel, replaceable food-grade silicone gasket
• Certifications: NSF certified, UL IP69 rated, IP69K tested
• Other Features: Conformal coating for protection in harsh environments

ArmorView Plus 7 Version

• Display Size: 12 inches
• Protection: IP66-rated, fully self-enclosed for cabinet-free HMI solutions
• Mounting Flexibility: Options for swing arm, pedestal, or fixed surface mounts

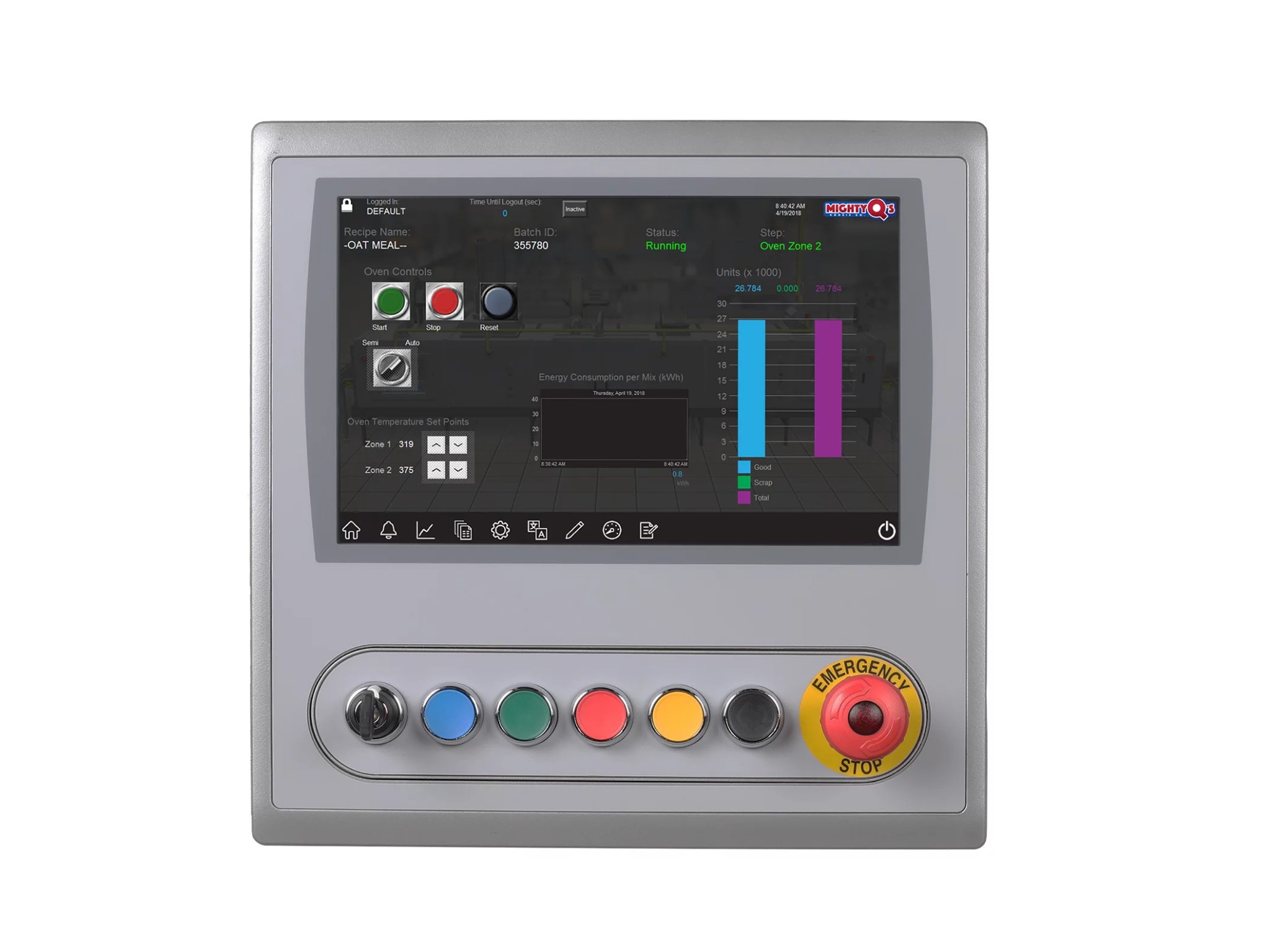

• Customization: Includes customizable button configurations, and hard-wired emergency stop (E-stop) options
