Servo drives and servo motors for machines from 0.4 to 6 kW
The High Concentrate Solutions for your machines

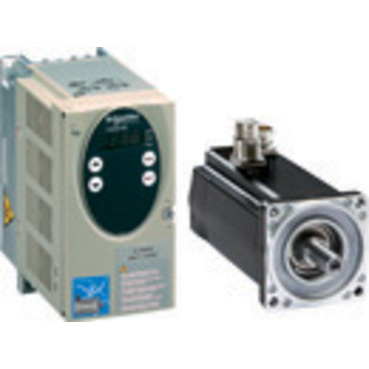

Lexium 05 Servo Drives & BSH Servo Motors
Features
Lexium 05 Servo Drives: Power range from 0.4 to 6 kW, voltage range from 115 V to 480 V, providing a versatile range for different applications.
BSH Servo Motors: Nominal torque of 0.5 to 36 Nm, with nominal speed ranging from 1500 to 8000 min-1, designed for low inertia performance.
A New "Additive-Free" Approach: ECM filter, "Power Removal" safety function, SinCos Hiperface encoder, and connection to CANopen, Modbus, and Profibus DP networks for enhanced connectivity.
Ultimate Simplicity: Features a Simply Start Menu, Automatic Motor Identification, and Auto Tuning functions for a streamlined setup and operation.
Benefits
With the new generation of Lexium 05 servo drives and BSH servo motors, you benefit from powerful solutions for designing and optimizing machines. This combination offers the perfect balance of technical performance and cost-effectiveness, meeting your needs for simplicity, reliability, and performance. By integrating essential motion control functions with user-friendly control and command interfaces, Lexium 05 enables the creation of efficient and cost-effective machines.
Applications
Material Handling
Printing & Packaging Applications
Winding & Unwinding
Small Machine Tools & Testing Machines
Automated Conveyors
Lexium 23 & Motors
Servo drives and servo motors from 100 W to 7.5 kW nominal power

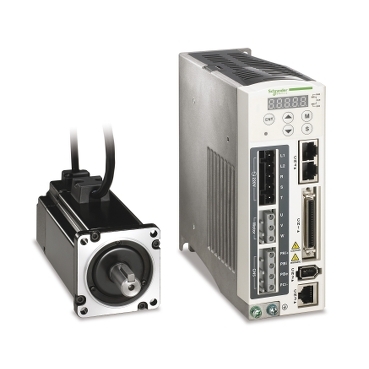

Lexium 23 Servo Drive & BCH Servo Motors
Features
Lexium 23 Servo Drive: Power range from 0.1 to 7.5 kW, available in 230 Volts Single Phase and 230 Volts 3 Phase range.
BCH Servo Motors: Torque ratings ranging from 0.3 to 48 Nm, with low, medium, and high inertia type motors available for various applications.
Accurate Control: BCH motors are 3-phase synchronous motors equipped with two ranges of high-quality encoders. The Lexium 23C Series is compatible with a 10,000 increment encoder, while the Lexium 23M is compatible with a 20-bit encoder, suitable for high-performance applications like machine tools.
Benefits
The combination of Lexium 23 Servo Drive and BCH Servo Motors has been tailored to meet various motion control applications. The Lexium 23 is a powerful servo drive that can operate in standalone mode with digital I/O control or can be used with an external position controller for more complex systems.
Applications
Material Handling
Assembly & Inspection Machines
Printing & Packaging
Winding & Unwinding
Machine Tools
